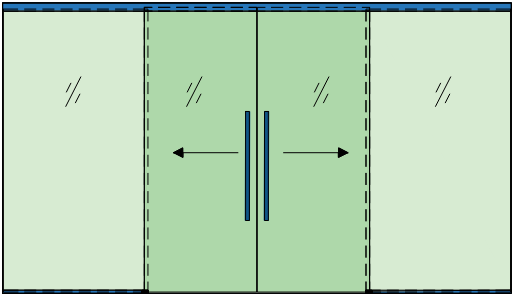

MS8 Two Doors & Two Fixed Panels - Recessed Ceiling Mounted System

$3,285.14

Finish

Handle

Extra Track

Syncro Set (optional)

0/500

If track lengths exceed 154 additional extra track is required. Mention Quantity (by the foot) (optional)

0/500

Quantity

MS8 Two Doors & Two Fixed Panels - Recessed Ceiling Mounted System with DORMOTION (DM) Fluid dampener that provides soft-open and soft-close for the sliding panel.

Note: This is for Standard Size Doors. For Custom Size Doors click “Next”
Technical Details:

Glass Thickness: 3/8" - 1/2"

Maximum Door Weight: 330 lb.

Maximum Door Panel Height: 118"

Maximum Door Panel Width: 57"

Minimum Door Panel Width: 40-3/16" With 330 lb. Dampener

Minimum Door Panel Width: 31-7/8" With 176 lb. Dampener

Door Opening Widths Are Standard at 40"

Note: Please Refer to The NGA Heavy Glass Door Design Manual

For Door and Fixed Panel Limits

DORMOTION (DM) Fluid dampener provides soft-open and soft-close for the sliding panel.

KD Kit Complete Sliding System Includes:

154" Sliding Track and Cover

Track Clips and Mounting Hardware (Ceiling)

Cover Brush

(2) Set Roller Carriers

(2) Unit XL 150 DM

154" Sidelite Extrusion and Mounting Hardware

154" Sidelite Filler Profile and Gasket

Track Endcaps

Recessed Cover Clip, Start/Stop Plate and Hex Bits

(2) Floor Guide

154" Dri-Fit U-Channel, Gasket and Endcaps

If track lengths exceeding 154" are required, additional track can be purchased separately.

Product Description
